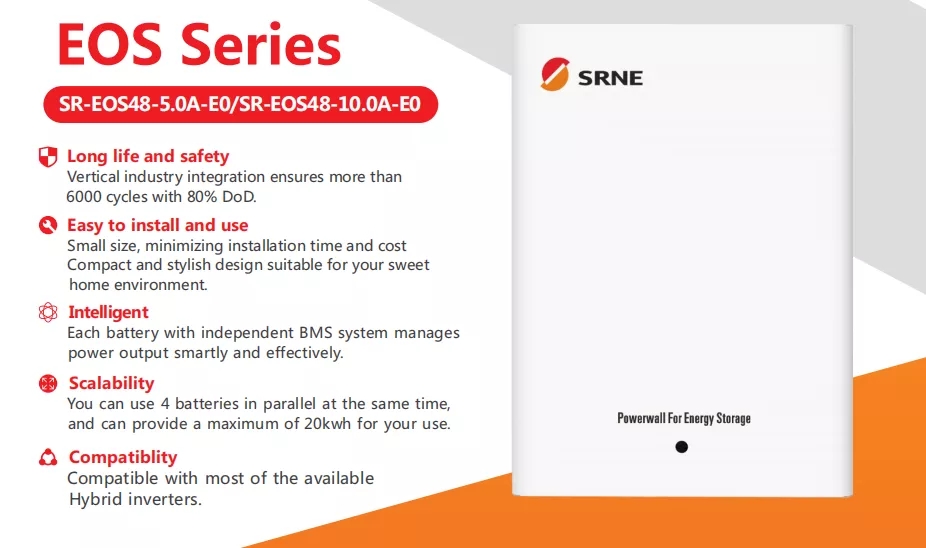

SRNE 5.12kwh Lithium ion battery SR-EOS48-5.0A-E0


1,579,000.00

Compare Support

SR-EOS is a new generation of household energy storage system with LFP batteries that can meet the diversified needs of global users. The SR-EOS energy storage system adopts a modular design, including power modules and ensures more than 6000 cycles with 80% DOD, so it can be easily combined into a system of any capacity required by the user.



1、Long life with more than 6000 cycles with 80% DOD.

2、Small size, stylish design, easy to install.

3、Each battery with an independent BMS system manages power output smartly and effectively.

4、Max. 4 units batteries in parallel at the same time and can provide a Max. 20kwh for your use.

5、Compatible with most of the available hybrid inverters.

Product model SR-EOS48-5.0A-E0 SR-EOS48-10.0A-E0
Rated voltage 51.2V 51.2V
Rated capacity 100Ah 200Ah
Rated energy 5.12kWh 10.24kWh
Weight 52kg 90kg
Dimentions(L*W*H) 620*450*140mm 830*515*140mm
Battery type LFP
Life time(25℃) 20 Years
Life cycles(80% DOD,25℃) 6000 Cycles
Max.charging voltage 57.6V
Over discharge voltage 44.8V
Constant charging current 100A
Constant discharging current 100A
Peak charging current 110A(3S)
Peak discharging current 110A(3S)
Max.Number of parallel 4
Communication interfaces CAN/RS232/RS485
Lithium Battery Standard UN38.3,MSDS,EN55032,EN55024,
EN61000-3-2,EN61000-3-3
Storage time / temperature 6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range 0~45℃
Discharging temperature range -10~45℃
Cooling method Natural cooling
Enclosure protection rating IP54
Operation Environment Indoor
