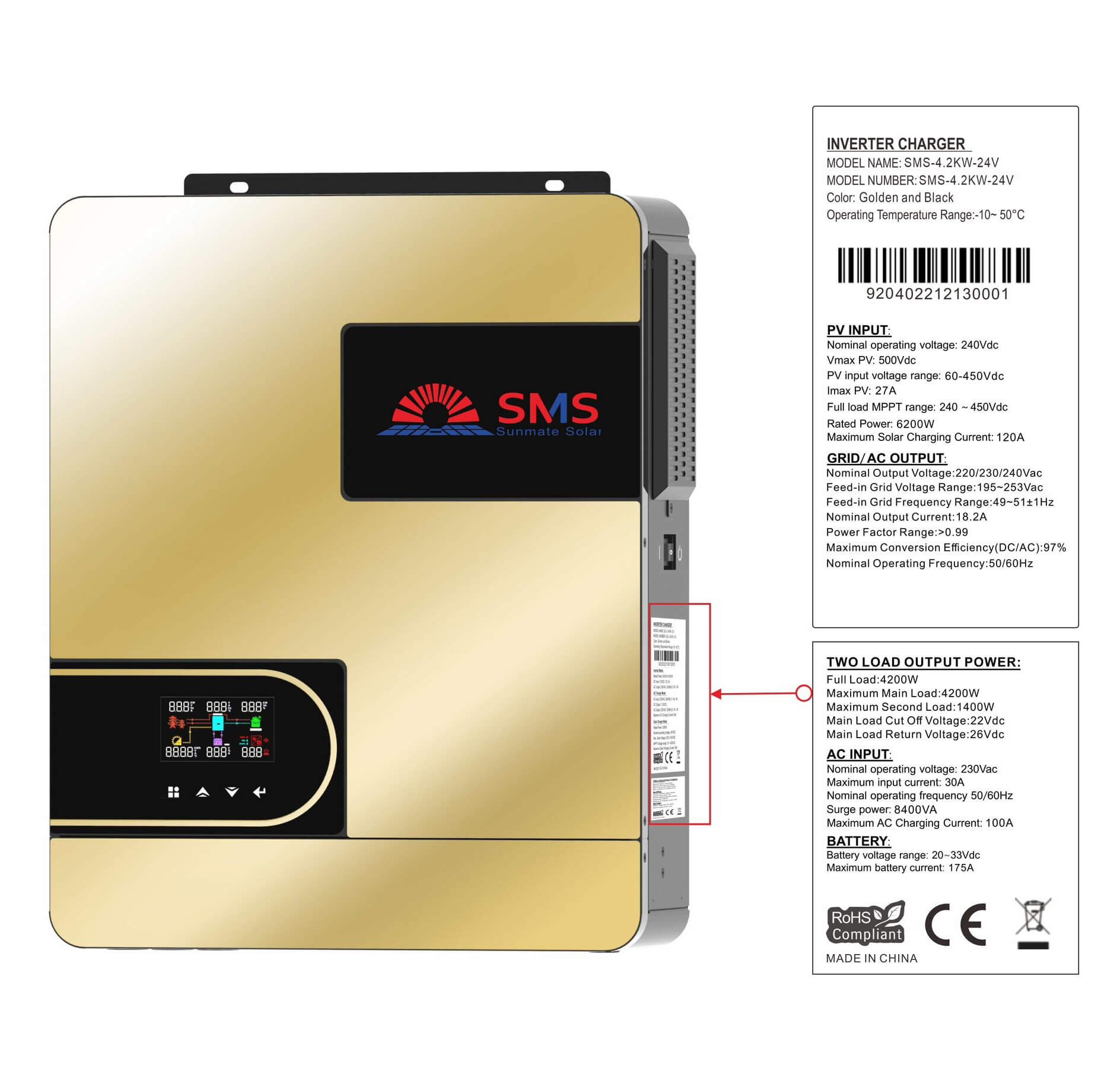

SMS Hybrid inverter 4.2KVA 24V(MPPT 120A)


396,000.00

Compare Support

SMS-4.2KVA 24V Hybrid Inverter: Power and Flexibility for Your Home

Experience the peace of mind of reliable backup power and clean energy generation with the SMS-4.2KVA 24V Hybrid Inverter! This versatile inverter delivers 4200W of continuous power for your essential appliances during outages, while also boasting a built-in solar charger for harnessing the sun’s energy and potentially reducing your electricity bills.

Key Features:

  1. Reliable Backup Power (4200W): Weather power cuts with confidence. The SMS-4.2KVA seamlessly switches on during outages, providing uninterrupted power to your critical devices.
  2. 24V Battery Compatibility: This inverter integrates seamlessly with a 24V battery system (sold separately) to store excess solar energy and provide backup power when needed.
  3. Built-in Solar Charger: Embrace clean energy independence by connecting solar panels (sold separately) to the inverter. Utilize the sun’s power to recharge your batteries and offset your electricity consumption.
  4. MPPT Solar Charging Technology: Equipped with Maximum Power Point Tracking (MPPT), the inverter maximizes solar energy harvest from your panels by operating at their ideal voltage output, ensuring optimal efficiency.
  5. Wide MPPT Voltage Range (60-450Vdc): The inverter offers compatibility with various solar panel configurations by accepting a broad MPPT voltage range.
  6. High Conversion Efficiency (up to 97%) : Minimal energy loss during operation translates to cost savings.
  7. Selectable Grid Output Voltage (220Vac, 230Vac, or 240Vac): Configure the inverter to match your existing electrical system.
  8. Grid Charging Capability: Charge your batteries from the utility grid during off-peak hours for additional cost savings (may require additional utility meter).
  9. Dual Load Outputs: Power essential appliances and even run a separate circuit for additional devices with the 4200W full load capacity and a dedicated 1400W second load output.
  • Rated Power (Continuous): 4200W (4.2KVA)
  • Surge Power: 8400VA
  • Battery Voltage: 24V (20Vdc – 33Vdc range)
  • PV Input (MPPT): Max 500Vdc; 120A Max Solar Charge Current
  • Output Voltage: Selectable 220Vac, 230Vac, 240Vac
  • AC Input (Grid): 230Vac nominal, 50/60Hz
  • MPPT Efficiency: High (often cited near 97-99%)
  • Load Outputs: Dual load (Main 4200W, Second 1400W)
  • Charging: 100A Max AC Charge Current, 120A Max Solar Charge
