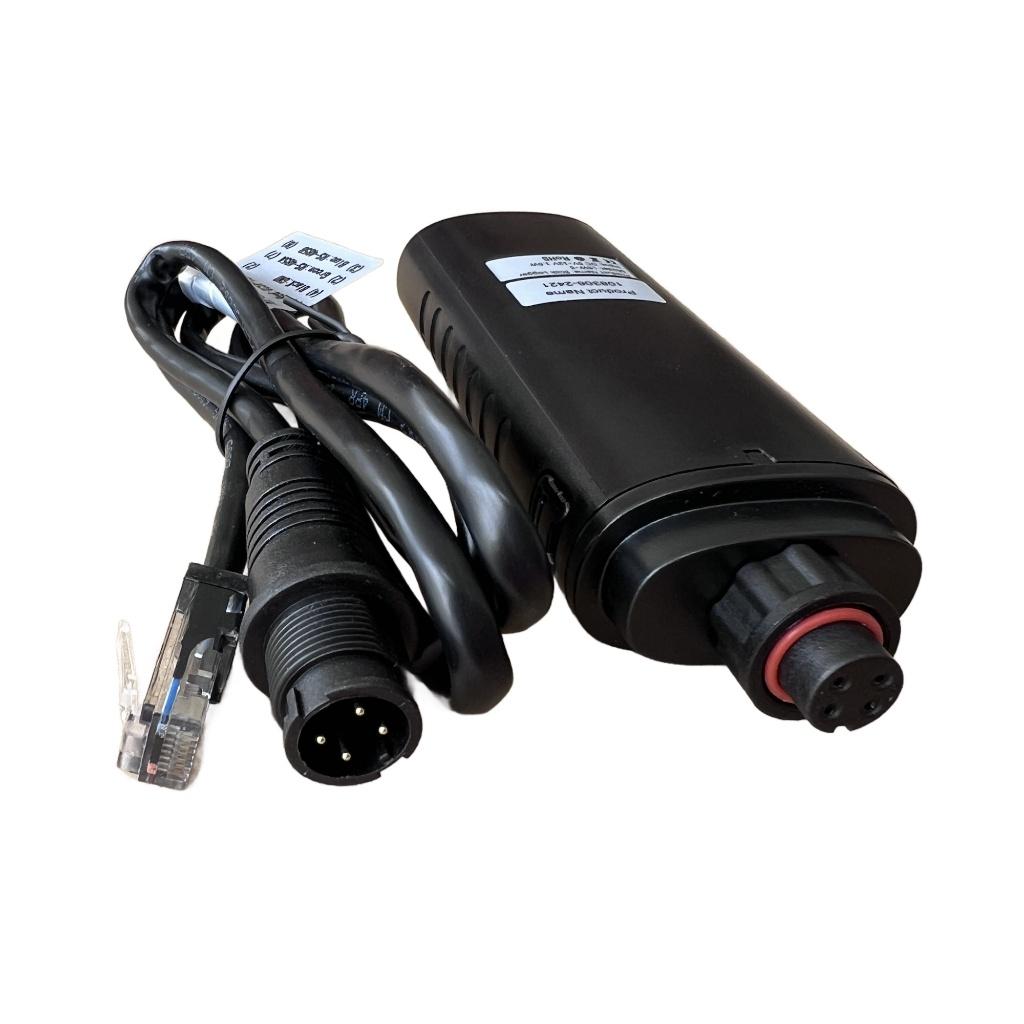

SRNE Inverter WIFI dongle

Models

MS-W-09

General parameters

Rated voltage

DC5V~12V

Maximum current

800mA(DC5V)

Protection class

 IP65

Wi-Fi

Working frequency

2.4GHz

Antenna gain

2.5dBi

Antenna

External

RS-485 Baud rate

9600bps(default)

Data output mode

Wi-Fi

Hardware encryption

WEP, WPA/WPA2

Communication distance

100M

Operating mode

AP+STA(Coexistence pattern)

Software

Supported device protocols

Modbus-RTU(main current),Non Modbus-RTU

Parameter configuration mode

APP or Built-in server

Software watchdog

support

Data upload cycle

5min(default)

Language

Chinese,English

Cloud platform

Eybond Value Clouds

Number of connected devices

1

Warranty

2 years
