9 pcs YF-LFP-HV-Battery 11.7KWH in series 1 pcs YF-PDU-125 2 pcs Rack 5 layers System Energy：105.98KWH System Nominal Voltage: 460.8V
Batteries, High Voltage Lithium, High Voltage Lithium
Support
Aurora 105.98kwh High Voltage Lithium Battery Stacking

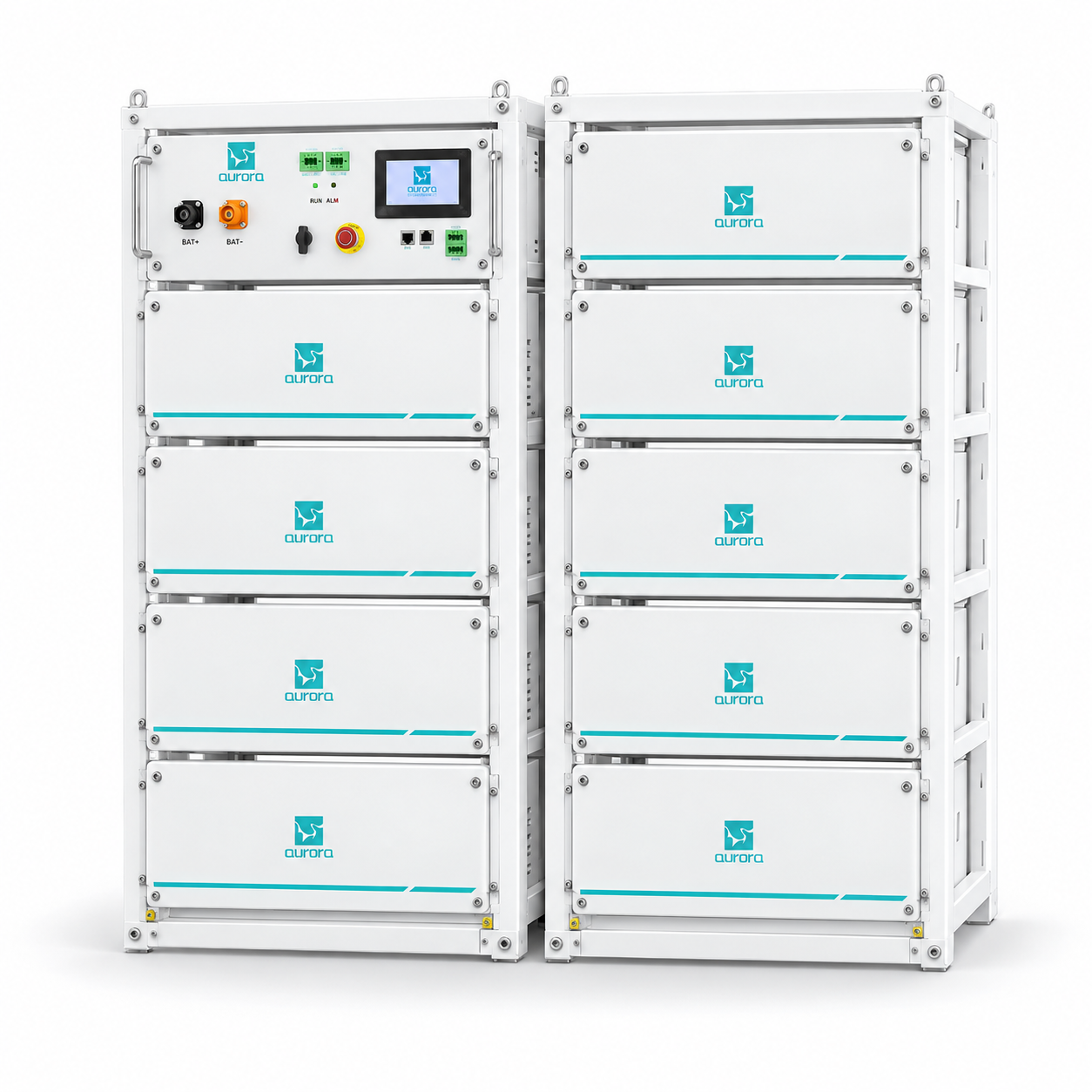

The Aurora YF-LFP-HV-9 is a 105.98kWh high-voltage LiFePOâ‚„ battery system comprising nine 11.7kWh battery modules, one intelligent PDU and two 5-layer racks. It operates at 460.8V nominal voltage, supports up to 100A continuous charging and discharging, and provides 90% depth of discharge with a rated life of at least 8,000 cycles. Its smart BMS, touchscreen LCD, CAN communication and parallel expansion make it suitable for commercial, industrial and large three-phase solar installations.
₦22,908,000.00
Support
| AURORA YF-LFP-HV-9 — PRODUCT DATASHEET | |||
| 105.98kWh High-Voltage LiFePO4 ESS • 9 Battery Modules + PDU • 2 × 5-Layer Racks | |||
| Category | Specification | Value | Notes |
| System | Model | YF-LFP-HV-9 | Aurora YF-LFP-HV Series |
| System | Battery chemistry | LiFePO4 | Lithium iron phosphate |
| System | Number of battery modules | 9 | Installed across two 5-layer racks |
| System | System energy | 105.98 | kWh; catalogue value |
| System | System nominal voltage | 460.8 | VDC |
| System | System operating voltage | 432–518.4 VDC | |
| System | Depth of discharge | 90% | |
| System | Scalability | Maximum 8 systems in parallel | Series maximum stated as 1,404kWh |
| Configuration | Complete rack arrangement | 1 PDU + 9 battery modules | Ten occupied positions across two racks |
| Configuration | Rack type | 2 × 5-layer brackets | Rack-mounted system |
| Configuration | Upper covers | 2 | One per rack |
| Battery module | Energy per module | 11.7 | kWh |
| Battery module | Nominal voltage per module | 51.2 | VDC |
| Battery module | Capacity per module | 230.0 | Ah |
| Battery module | Module dimensions (W × H × D) | 528 × 235 × 617 mm | Compatible with 19-inch racks; ±5mm |
| Battery module | Approximate module weight | 89 | kg ±1kg each |
| Electrical | Recommended charge/discharge current | 80 | A |
| Electrical | Maximum continuous charge/discharge current | 100 | A |
| Electrical | Peak charge/discharge current | 125 | A for 2 seconds |
| Control | Display type | LCD touch screen | Located on PDU |
| Control | Communication port | CAN | |
| Control | Protection | Built-in smart BMS and breaker | |
| Control | Remote capability | Remote OTA upgrade and maintenance | Catalogue feature |
| Performance | Cycle life | ≥8,000 cycles | Catalogue rating |
| Performance | Cooling method | Natural cooling | |
| Environmental | Protection level | IP21 | Indoor installation |
| Environmental | Charging temperature | 0°C to +50°C | |
| Environmental | Discharging temperature | −5°C to +50°C | |
| Environmental | Storage temperature — one month | −10°C to +45°C | |
| Environmental | Storage temperature — six months | −10°C to +35°C | |
| Environmental | Relative humidity | 20–95% | No condensation |
| Environmental | Maximum altitude | ≤2,000 m | |
| Physical | PDU approximate weight | 21.5 | kg ±1kg |
| Physical | Each 5-layer bracket dimensions | 540 × 655 × 1,380 mm | W × D × H; ±10mm |
| Physical | Each 5-layer bracket approximate weight | 40.5 | kg ±1kg |
| Physical | Upper-cover dimensions | 540 × 600 × 50 mm | W × D × H; ±10mm |
| Physical | Upper-cover approximate weight | 5 | kg ±0.5kg |
| Physical | Approximate assembled component weight | 913.5 | Excludes cables/accessories; calculated from listed components |
| Warranty | Warranty period | 10 years | At 0.5C charge/discharge, 25°C and 80% DOD |
