SMS Hybrid inverter 6.2KVA 48V(MPPT 120A)


456,000.00

Compare Support

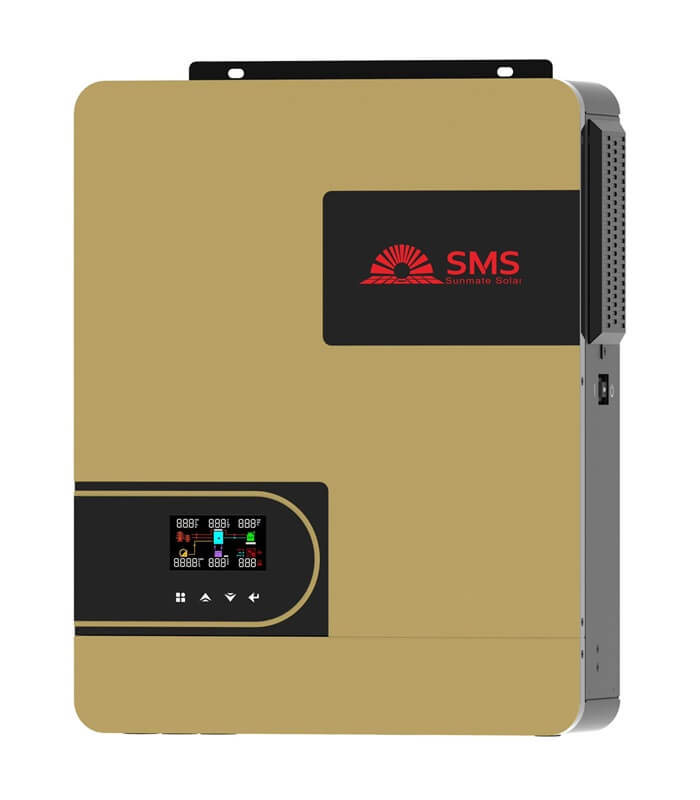

SMS-6.2KVA 48V Hybrid Inverter: Get the Best out of Solar Energy

Experience the ultimate combination of reliable backup power and clean energy generation with the SMS-6.2KVA 48V Hybrid Inverter! This powerhouse delivers a robust 6200W of continuous output, ensuring your essential appliances remain operational during outages. Plus, the built-in solar charger allows you to harness the sun’s energy to reduce your dependence on the grid and potentially slash your electricity bills.

Key Features:

  1. Constant Power (6200W): Say goodbye to power cuts! The SMS-6.2KVA seamlessly switches on during outages, providing uninterrupted power for your critical devices.
  2. 48V Battery Compatibility: Integrates seamlessly with a 48V battery system (sold separately) to store excess solar energy and provide backup power when needed.
  3. Embrace Solar Energy: Connect solar panels (sold separately) to the inverter and utilize the sun’s power to recharge your batteries and offset your electricity consumption.
  4. MPPT Solar Charging Technology: Maximizes solar energy harvest from your panels by operating at their ideal voltage output for optimal efficiency.
  5. Wide MPPT Voltage Range (60-450Vdc): Accommodates various solar panel configurations by accepting a broad MPPT voltage range.
  6. High Conversion Efficiency (up to 97%) : Minimal energy loss during operation translates to cost savings.
  7. Selectable Grid Output Voltage (220Vac, 230Vac, or 240Vac): Configure the inverter to match your existing electrical system.
  8. Grid Charging Capability: Charge your batteries from the utility grid during off-peak hours for additional savings (may require additional utility meter).
  9. Dual Load Outputs: Power essential appliances and even run a separate circuit for additional devices with the 6200W full load capacity and a dedicated 2066W second load output.

Operating Temperature Range: -10°C to +50°C

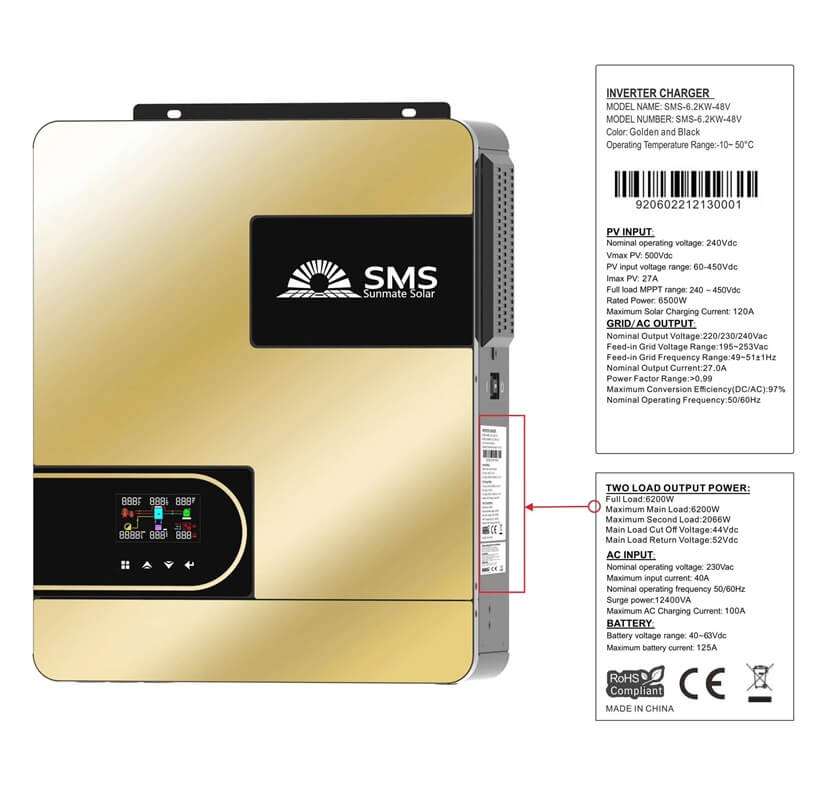

• Model Number: SMS-6.2KW-48V
• Nominal Operating Voltage: 240Vdc
• Maximum PV Voltage (Vmax PV): 500Vdc
• PV Input Voltage Range: 60Vdc to 450Vdc
• Maximum Input Current (Imax PV): 27A
• Full Load MPPT Range: 240Vdc to 450Vdc
• Rated Power: 8200W
• Maximum Solar Charging Current: 120A
• Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
• Feed-in Grid Voltage Range: 195 Vac to 253 Vac
• Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
• Nominal Output Current: 15.7A
• Power Factor Range: Greater than 0.99
• Maximum Conversion Efficiency (DC/AC): 97%
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• AC Input (Grid Charging):
• Nominal Operating Voltage: 230Vac
• Maximum Input Current: 30A
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• Surge Power: 7200VA
• Maximum AC Charging Current: 100A
• Battery Voltage Range: 20Vdc to 33Vdc
• Maximum Battery Current: 150A
